4.5 (4 Reviews) | Catalog: VSWR-DSA800 | Model: Rigol VSWR-DSA800
VSWR Measurement Kit (works with all Rigol DDSA800 series spectrum analyzers equipped with the tracking generator (-TG) option
Your Price: $531.00
Sign-in for EDU Pricing!
Thank you for your interest! Complete the form below and one of our support engineers will contact you directly to coordinate your product demonstration.
Name
Email Address
Phone Number
Which state are you located in?
Thank you!
We've received your request and will be in touch soon.
🤭 Oops there was an error processing your request. Please contact us by phone, chat or email to set-up your demo.
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
This item is special order and is non-returnable and non-cancellable.
Please reach out to us if you are uncertain about this item. We will help you find the right solution.
Have a question? Ask an expert.
VSWR-DSA800 option (if used together with the VB1020 and DSA800-TG options) provides measurement functions of S11-related specifications (such as the return loss, reflection coefficient and VSWR).

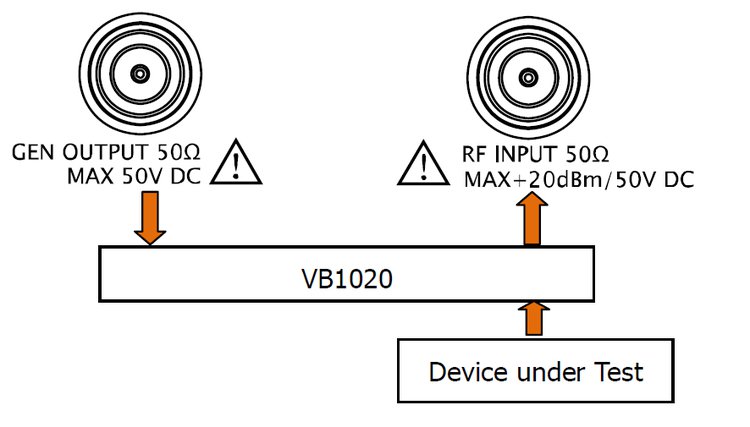

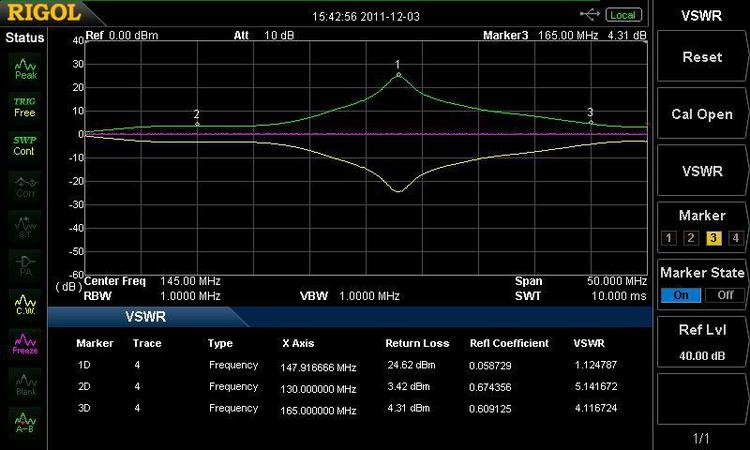

Press Meas at the front panel and then press VSWR to enable the VSWR measurement function. The screen is divided into two windows with the upper window (the basic measurement window) displaying the sweep trace and the lower window displaying the measurement wizard and measurement results. Perform two measurements respectively according to the measurement wizard in the lower window: measurement with the device under test disconnected (Meas Setup → Cal Open, represented by trace 2) and measurement with the device under test connected (Meas Setup → VSWR, represented by trace 1). The return loss is determined by the difference (represented by the math trace) of the results of the two measurements and the reflection coefficient and VSWR are determined by the return loss.
