Teledyne LeCroy T3DSO1202A - 2-Channel, 200 MHZ, Digital Oscilloscope

Teledyne Test Tools new T3DSO1000/1000A Oscilloscopes feature two channel and four channel models. The two channel model is available in 100 MHz, 200 MHz or 350 MHz bandwidths, a single ADC with up to 2 GSa/s maximum sample rate, and up to 28 Mpts of sample memory. The four channel scope is available in 100 and 200 MHz models and incorporates two 1 GSa/s ADCs and two 14 Mpts memory modules. When all channels are enabled, each channel has sample rate of 500 MSa/s and a standard record length of 7 Mpts. When only a single channel per ADC is active, the maximum sample rate is 1 GSa/s and the maximum record length is 14 Mpts. For ease-of-use, the most commonly used functions can be accessed with its user-friendly front panel design.

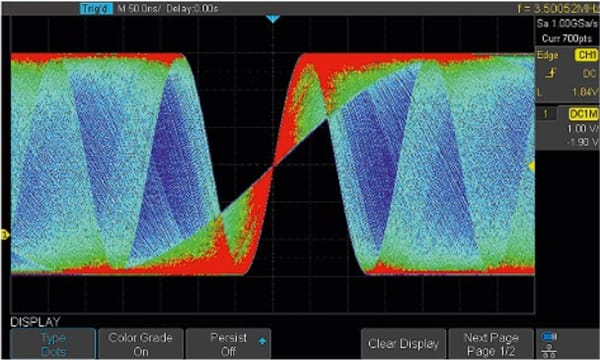

The T3DSO1000 series employs a new generation of high speed display technology that provides excellent signal clarity, fi delity and performance. The system noise floor is also lower than similar products in the industry. It comes with a minimum vertical input range of 500 uV/div, an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400,000 frames/ sec (sequence mode). The T3DSO1000 also employs a 256-level intensity grading display function and a color temperature display mode not found in other models in this class. Teledyne Test Tools latest oscilloscope offering supports multiple powerful triggering modes including serial bus triggering. Serial bus decoding for IIC, SPI, UART, CAN, LIN bus types is included. The models also include History waveform recording, and sequential triggering that enable extended waveform recording and analysis.

Another powerful addition is the new 1 million point FFT math function that gives the T3DSO1000 very high frequency resolution when observing signal spectra. The new digital design also includes a hardware co-processor that delivers measurements quickly and accurately without slowing acquisition and front-panel response. The features and performance of Teledyne Test Tools T3DSO1000 family cannot be matched in this price class.

The four channel and A series includes even more functions, including: searching and navigating, on-screen Bode plot, 16 digital channels (Option), an external USB powered 25 MHz AWG module (Option), a USB WIFI adapter (Option), and an embedded application that allows remote control via web browser.

Tools for Improved Debugging

• Long Capture - 7 Mpts/Ch and 14 Mpts interleaved
• Math and Measure - 7 basic math functions plus FFT and 38 automatic measurement parameters
• Connectivity - USB for mass storage, printing and PC control, plus LAN for fast data transfer
• Serial Bus Trigger and Decode - I2C, SPI, UART, RS232, CAN, LIN
• Waveform Sequence Recorder - record and play back up to 80,000 waveforms
• Optional MSO - 16 Digital Channels (4 channel series only)
• Capture more time and show more waveform detail
• Extract results from waveforms and measurements
• Save data for external analysis and screen images for reports
• Debug serial buses directly in your Oscilloscope
• Replay the changing waveform history
• Add mixed signal debugging to your Oscilloscope

Function and Characteristics

When all channels are enabled, each channel has a maximum sample rate of 500 MSa/s. When a single channel per pair is active, that channel has sample rate of 1 GSa/s.

The four channel series has two 1 GSa/s ADC chips (channel 1 and 2 share one, channel 3 and 4 share another), so that each channel can achieve sample rates up to 500 MSa/and work on bandwidths of 200 MHz when all channels are enabled.
