Instek SPD-3606 Multiple Output Dual Range Switching DC Power Supply

Name: Instek SPD-3606 Multiple Output Dual Range Switching DC Power Supply
Brand: Instek
SKU: InstekSPD-3606
Price: 698.25 USD
Availability: InStock

0 reviews | Model: Instek SPD-3606

Compare

375W, 3-channel, Dual Range 0-30V, 0-6A or 0-60V, 0-3A Triple Output

Three independent, isolated output
CH3 adjustable output : 0.1~5V/3A
High efficiency power conversion (up to 25% more than traditional power supply)
Remote output on/off control
OVP to protect the DUT
OTP to protect SPD-3606 to decreas the repair rate
Compact size, light weight
Low Fan acoustic noise with fan speed control circuit
Voltage/current protection knob (option)

View Product Details

List Price: $735.00

Your Price: $698.25

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Recommended for you

Instek SPD-3606 Accessories

Choose a Category

Power Supply Kits

for the Instek SPD-3606

Cal Test CT4041 Power Supply Accessory Kit ( rated for up to 20amps ) Get the most...

Catalog: CT4041

(24)

In Stock!

Add to Cart

Description

Instek SPD-3606 - Multiple Output Dual Range Switching DC Power Supply

Constant voltage operation
Constant current operation
Tracking Series operation
Tracking Parallel operation
Output On/Off control
3 outputs with full Voltage control
LED Display

The Chief TILVABIF Vertical Connector Kit vertically connects any combination of Chief's TIL1X1IF, TIL1X2IF and TIL1X3IF LED video wall mounting system.

High Economic value D.C. Power Supply

SPD-3606 DC power supply provides 375W capability, three isolated outputs with dual-range for CH1/CH2, highly efficient power conversion, low noise, high reliability, thorough protection design, and compact size. SPD-3606 creates a new benchmark for satisfying mainstream power supply demand.

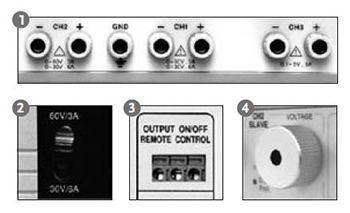

Dual-Range

CH1/CH2 of SPD-3606 offers dual-range output either at 30V/6A or 60V/3A per channel to accommodate broad application in one unit. With the auto Series/Parallel tracking operation, SPD-3606 is able to provide the master output at 30V/12A, 60V/6A, or 120V/3A. One SPD-3606 can cover three-output applications and wide combinations of voltage/current output.

High Efficiency and High Power Density

energy and align with global environmental protection concerns. Besides, the high power densities make SPD-3606 weigh less than half and occupy much less space than equal power rating linear power supply, which is used to be quite heavy and bulky.

Thorough Design of Protection

To avoid the damage caused by an improper operation to SPD-3606 and DUT, SPD- 3606 provides numerous protection features such as reverse polarity protection, OVP (Over Voltage Protection) and OTP (Over Temperature Protection)In case the wrong AC Power is connected, SPD-3606 automatically selects can cope with it by switching 115V/230V source internally.

Manual or Remote Output on/Off Control

SPD-3606 provides Output on/off function. User can preset the voltage/current value and check the connection between DUT and power supply is ready. Then users could control output on/off by manual switching or by remote connection. SPD-3606 also provides volume guard function. It is an optional item which replaces the regular Voltage/Current knobs to prevent accidentally changing the output level. It is useful for automated testing at fixed output level, such as assembly line inspection.

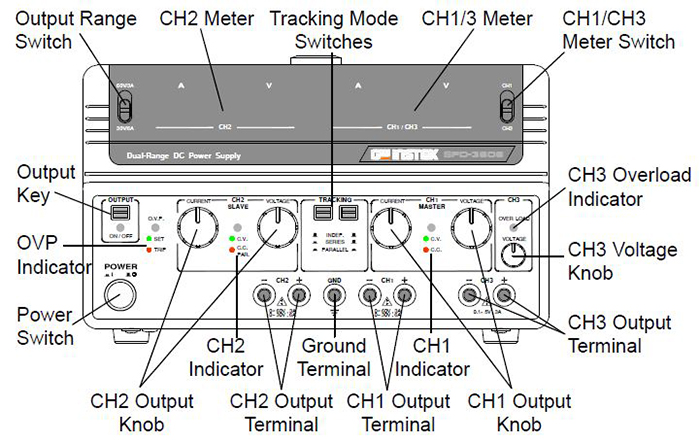

Front Panel Overview:

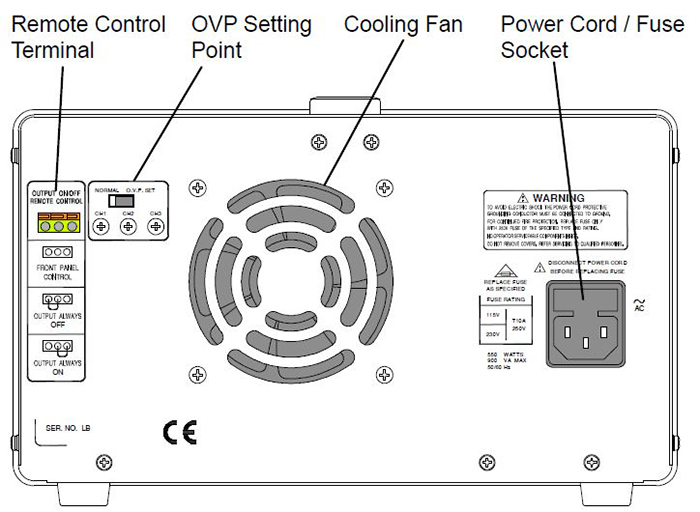

Rear Panel Overview:

In The Box

Manuals/Guides

Manufacturer Specs

OUTPUT RATINGS
CH1/CH2 Independent	0 ~ 30V / 0 ~ 6A ; 0 ~ 60V / 0 ~ 3A
CH1/CH2 Series	0 ~ 60V / 0 ~ 6A ; 0 ~ 120V / 0 ~ 3A
CH1/CH2 Parallel	0 ~ 30V / 0 ~ 12A ; 0 ~ 60V / 0 ~ 6A
CH3	0.1 ~ 5V / 3A
VOLTAGE REGULATION
Line	≤0.01% + 3mV
Load	≤0.01% + 5mV (rating current ≤6A) ≤0.01% + 8mV (rating current ≤12A)
Ripple & Noise	≤5mVrms (5Hz ~ 1MHz ) ≤ 50mVpp (20Hz ~ 20MHz)
Recovery Time	≤100µs(50% load change, minimum load 0.5A)
CURRENT REGULATION
Line	≤0.2% + 3mA
Load	≤0.2% + 3mA
Ripple & Noise	≤3mArms
TRACKING OPERATION
Tracking Error	≤0.5% + 10mV of master
Series Regulation	≤300mV
Ripple & Noise	≤10mVrms (5Hz ~ 1MHz) ≤100mVpp (20Hz ~ 20MHz)
OUTPUT ON/OFF RESPONSE TIME
Voltage Up (10% ~ 90%)	≤100ms ( ≤ 95% rating load)
Voltage Down (90% ~ 10%)	≤100ms ( ≤ 10% rating load)
OVP
Accuracy	± (0.5% of reading + 0.5V)
METER
Type	3 1/2 digits 0.5" LED display
Accuracy	± (0.5% of reading + 2 digits)
Resolution	100mV/10mA
INSULATION
Chassis & Terminal	100MΩ or above (DC 1000V)
Chassis & AC code	100MΩ or above (DC 1000V)
EMPERATURE COEFFICIENT
Voltage	≤ 100ppm/°C + 3mV
Current	≤ 150ppm/°C + 3mA
REMOTE CONTROL
	Output On/Off
FAN NOISE
	≤50dB
OPERATION ENVIRONMENT
	Ambient temperature 0 ~ 40°C Relative humidity ≤ 80%
STORAGE ENVIRONMENT
	Ambient temperature -10 ~ 70°C Relative humidity ≤ 70%
POWER SOURCE
	AC 115V/230V ±15%, 50/60Hz
ACCESSORIES
	User manual x 1 Power code x 1 Test lead GTL-104 x 2, GTL-105 x 1 or European test lead GTL-201 x 1, GTL-203 x 1, GTL-204 x 2
DIMENSIONS & WEIGHT
	255 (W) x 145 (H) x 265 (D) mm Approx. 6kg

Tech Specs

Power Supplies/DC Power Supplies Template
Outputs	Triple
Voltage Output 1	Variable
Max Voltage Output 1	30 V
Programmable	No
Max Current Output 1	3 A
Voltage Output 2	Variable
Max Voltage Output 2	60 V
Max Current Output 2	3 A
Voltage Output 3	Variable
Max Voltage Output 3	5 V
Max Current Output 3	3 A
Meter Type	Digital
Switching	Yes
Linear/Switching	Switching
Max Display Resolution Current	10 mA
Max Display Resolution Voltage	100 mV
Constant current/voltage	Yes
Remote Sensing	Yes
Test Equipment General Attributes
Product Weight	6 KILOS (13.23 LBS)
Product Height	145 MM (5.71 IN)
Product Length	265 MM (10.43 IN)
Product Width	255 MM (10.04 IN)
HTS/Schedule B Number	8504.40.9510
ECCN Number	EAR99
Calibration Included	Factory Calibration
Power Supply Voltage	120V 50/60 Hz
Country of Origin	China
Other Information	CH1/CH2 Independent: 0 ~ 30V / 0 ~ 6A ; 0 ~ 60V / 0 ~ 3A CH1/CH2 Series: 0 ~ 60V / 0 ~ 6A ; 0 ~ 120V / 0 ~ 3A CH1/CH2 Parallel: 0 ~ 30V / 0 ~ 12A ; 0 ~ 60V / 0 ~ 6A CH3: 0.1 ~ 5V / 3A Line: =0.01% + 3mV Load: =0.01% + 5mV (rating current =6A) =0.01% + 8mV (rating current =12A) Ripple & Noise: =5mVrms (5Hz ~ 1MHz ) = 50mVpp (20Hz ~ 20MHz) Recovery Time: =100?s(50% load change, minimum load 0.5A) Line: =0.2% + 3mA Load: =0.2% + 3mA Ripple & Noise: =3mArms Tracking Error: =0.5% + 10mV of master Series Regulation: =300mV Ripple & Noise: =10mVrms (5Hz ~ 1MHz) =100mVpp (20Hz ~ 20MHz) Voltage Up (10% ~ 90%): =100ms ( = 95% rating load) Voltage Down (90% ~ 10%): =100ms ( = 10% rating load) Accuracy: ? (0.5% of reading + 0.5V) Type: 3 1/2 digits 0.5" LED display Accuracy: ? (0.5% of reading + 2 digits) Resolution: 100mV/10mA Chassis & Terminal: 100MO or above (DC 1000V) Chassis & AC code: 100MO or above (DC 1000V) Voltage: = 100ppm/?C + 3mV Current: = 150ppm/?C + 3mA : Output On/Off : =50dB : Ambient temperature 0 ~ 40°C Relative humidity = 80% : Ambient temperature -10 ~ 70°C Relative humidity = 70% : AC 115V/230V ?15%, 50/60Hz : User manual x 1 Power code x 1 Test lead GTL-104 x 2, GTL-105 x 1 or European test lead GTL-201 x 1, GTL-203 x 1, GTL-204 x 2
