Hioki PQ3100-02/600 KIT - Power Quality Analyzer Kit

Portable Power Meter and Analyzer

• Kit includes:
  - 1x PQ3100 Power Quality Analyzer
  - 4x CT7136 AC Clamp On Sensor​
  - 1x 8GB SD Card
  - 1x PW3198 Hard Case
• Record data including voltage, current, power, harmonics, and flicker simultaneously along a single time axis
• Bundled PQ ONE application software makes it easy to create reports
• Directly supply power to connected current sensors

Reliable power supply maintenance, management, troubleshooting, and analysis.

The power grid is the single most important piece of infrastructure in our society, and regular maintenance and management are essential in order to prevent problems. When power supply issues are caused by factors such as equipment malfunctions or rapid surges in power demand, personnel are called upon to analyze the underlying causes quickly and precisely. The PQ3100 aids in reliable power analysis by delivering analytical capabilities that reliably captures the full range of power anomalies along with exceptional ease of use that facilitates each step of instrument operation, from connecting it to the circuit to recording data.

Recording power quality data for the grid

The PQ3100 records data including voltage, current, power, harmonics, and flicker simultaneously along a single time axis, and the included PQ ONE application software makes it easy to create reports.

Analyzing device power supply issues

When you need to resolve issues with a device that unexpectedly malfunctions or suddenly stops, the PQ3100 captures all power anomalies, including instantaneous outages, voltage drops, and frequency fluctuations, while simultaneously recording trend data.

Measuring AC/DC power

Used in combination with an AC/DC auto-zero current sensor, the PQ3100 can accurately measure DC currents over extended periods of time. Since the instrument supplies power to connected sensors, there’s no need to use an additional power supply for sensors.

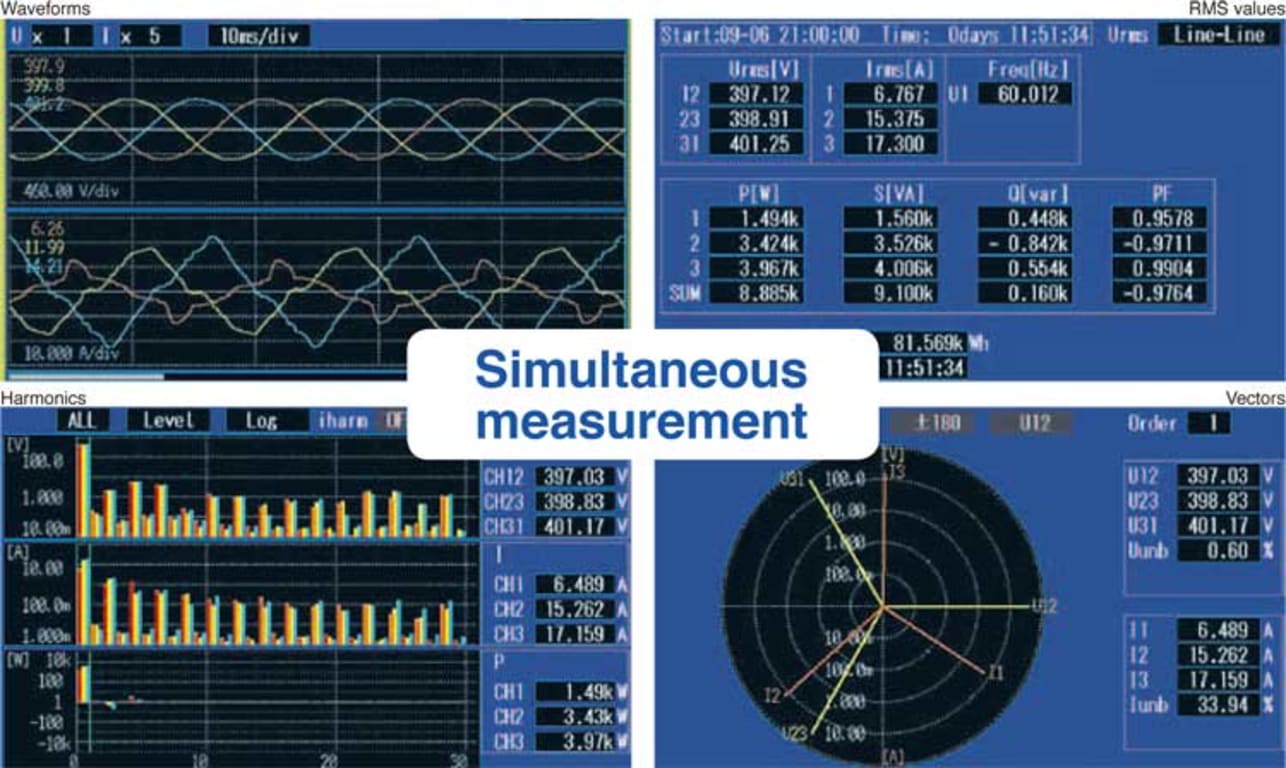

Simultaneously measure all parameters at once​

Measuring all parameters at the same time
The PQ3100 makes it easy to verify current conditions by displaying all measurement parameters simply by toggling the screens.


Simultaneously recording trend graphs and event waveforms
The PQ3100 records trend data for all parameters at once. When the PQA detects a power anomaly, the event is immediately recorded. Since maximum, minimum, and average values are recorded during each interval, you’ll never miss peak values.
